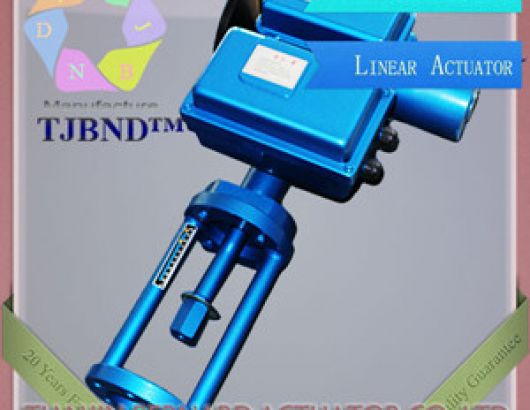

SD Series Linear Electric Actuator

Demonstration: OA-10/ voltage travel time mounted model control model
Supply voltage: K: 220VAC, F: 380VAC,
Travel time: Sees the table
Mounted model: Z: Direct-mounted, H: foot-plate,
Control model: L: Two types, switch, switch quantity input, abbreviation: Integral-model and proportional modulating type,4---20mA input
S: Separated-model and proportional modulating type, 4---20mA input
Y: Remote-control type, the switch quantity input
Main Technical parameters:
The following parameters mainly apply to proportional modulating type; the 1, 2, 3, 4, 5, 6 rules are not suitable for remote controlled type and on-off type.
1. Input signal: 4~20mA(or1-5V) DC
2. Input channel resistance:250Ω
3. Input channel number:1( separated model 3)
4. basic error: 1%; 2.5%
5. Return error: 1.5%
6. Dead band: 0.5-3% continual and adjustable
7. Damping characteristic: no swing
8. Voltage of power supply:
110V-460V
9. Operating environment:
Temperature:
Integral model: -25~+75°C
Separated model: -25~+80°C
position-localizer:-20~+75°C
Humidity: ≤85% no corrosive characteristic exist in the ambient air.
10. Protection class: in accordance with IEC14 IP65 (rainproof and dustproof); position-localizer GAMX in accordance with IEC14 IP44.
